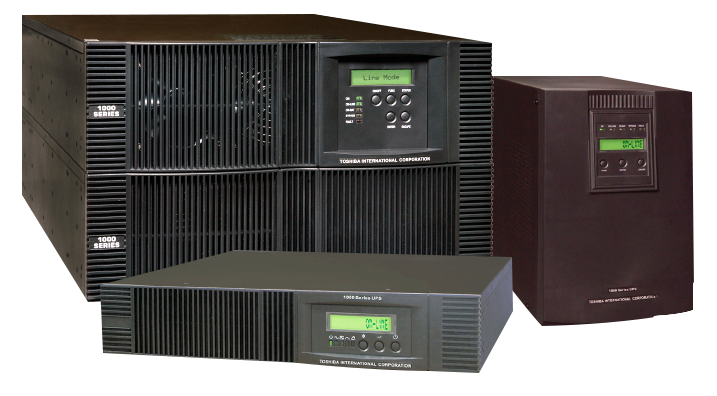

Toshiba 1000 Series UPS

(1.5kVA and 3.0kVA)

Toshiba's 1000 Series UPS systems are available in both tower and rack-mount configurations in 1.5 kVA or 3.0 kVA ratings. The true on-line, double-conversion series of UPS supplies clean single-phase power with reliable features like a wide input voltage/frequency window, auto-restart and cold start capabilities.

Need Help? Call 1-877-228-7693
  • Tower & Rack-Mount Configurations in 1.5 or 3 kVA
  • Rapid Charge to 90% in 4 Hours
  • Wide Input Voltage/Frequency Window
  • Auto-Restart and Cold Start Features
  • Ideal for Data Centres, Retail & POS Equipment
  • Optional Network Interface Card for Remote Monitoring (RemotEyeII®)
  • Three-Year Warranty on UPS
  • Two-Year Full Replacement Warranty on Battery

Applications

  • Industrial Systems
  • Health Care
  • Laboratories
  • Small Business Offices
  • Point-of Sale Equipment
  • Internet Service Provider
  • Server Consolidation
  • Datacenters
  • Storage
  • Wiring Closets

Specs

Size 1.5 kVA (1050 W) 3 kVA (2100 W)
Part Number (Tower) UT1A1A015C6 UT1A1A030C6
Part Number (Rack-mount) UT1A1A015C6RKB2 UT1A1A030C6RKB2
Input Voltage 120 VAC (80 to 144V, +20% to -33%)
Input Factor >.97%
Output Voltage 100/110/115/120/127 VAC
Frequency 50/60 Hz Auto-Sensing
Output Power Factor 0.7
Efficiency AC/DC/AC >86%
Rated Current 12.5A 25A
Overload Capacity 125% for 1 min, 130% for 10 sec
Crest Factor 3.0 at full load
Back-up Time 6 min (full load) 5 min (full load)
Dimensions (Tower) 16.5" x 6.0" x 9.4" 16.7" x 8.9" x 14.2"
Dimensions (2U Rack-mount) 16.7" x 16.9" x 3.5" 25.0" x 16.9" x 3.0"
Weight (Tower/2U) 37.4 / 37.6 lbs 72.5 / 71.5 lbs
Line Cord 5-15P L5-30P
Operating Temperature 0°C to 40°C (32°F to 104°F)
Warranty Three-years on electronics; Two-years full replacement on battery
Specs & Drawings 1.5 kVA Tower 3.0 kVA Tower
Specs & Drawings 1.5 kva rackmount 3.0 kVA Rackmount
